DMG Installer Styling

Create polished drag-to-install DMG images with a background image and positioned icons.

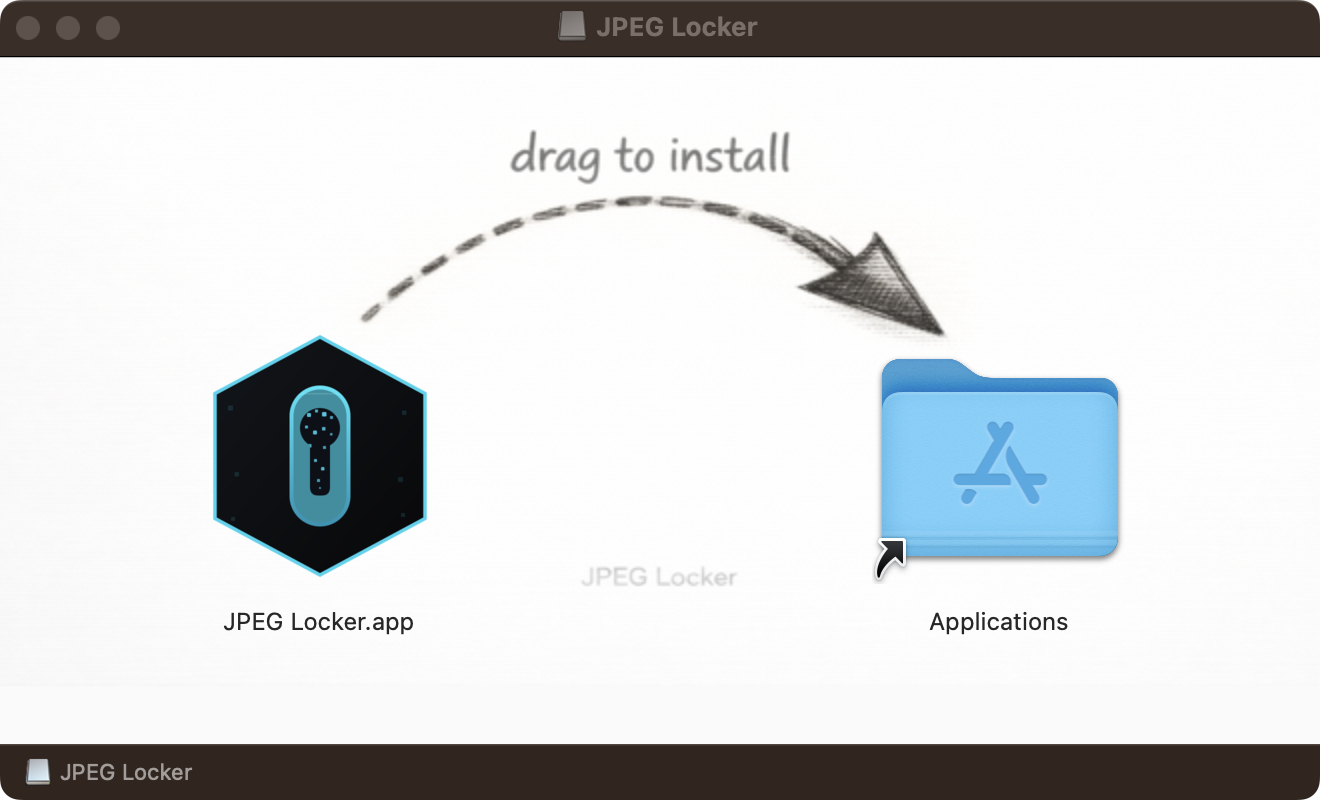

Styled DMG installer example

Before and after

Without [macos.dmg] config, the DMG opens with Finder’s default layout — no background, no icon positioning, no visual guidance for the user.

With styling configured, the DMG opens with your background image, the app icon and Applications folder at exact positions, creating the standard macOS “drag to install” experience.

Setup

1. Create a background image

Design a background image for your installer window. Common dimensions are 660x400 pixels. PNG format is recommended.

The image should visually guide users to drag the app icon to the Applications folder. A subtle arrow or instructional text works well.

2. Add the `[macos.dmg]` section to `sign.toml`

[macos.dmg]
background = "assets/dmg-background.png"
window-size = [660, 400]
icon-size = 128
app-position = [160, 200]
app-drop-link = [500, 200]

3. Build as usual

cargo codesign macos --app "target/release/bundle/MyApp.app"

The DMG is created with the styled layout automatically. No additional flags or steps needed.

Configuration reference

Field	Type	Example	Description
`background`	path	`"assets/dmg-background.png"`	Background image path, relative to where `cargo codesign` runs.
`window-size`	`[u32, u32]`	`[660, 400]`	Width and height of the Finder window in pixels.
`icon-size`	integer	`128`	Size of icons in the Finder window.
`app-position`	`[u32, u32]`	`[160, 200]`	Pixel coordinates of the `.app` icon.
`app-drop-link`	`[u32, u32]`	`[500, 200]`	Pixel coordinates of the `Applications` symlink.

All fields are required when [macos.dmg] is present. Omit the entire section for a plain DMG.

Coordinate system

Coordinates are relative to the top-left corner of the Finder window content area. The y-axis points downward.

For a 660x400 window with two icons side by side:

Left icon (your app): [160, 200] — centered vertically, left third
Right icon (Applications): [500, 200] — centered vertically, right third

Adjust these to match your background image design.

Background image tips

Use the same dimensions as window-size for a pixel-perfect fit
PNG format is recommended (lossless, supported everywhere)
The image is copied into the DMG as .background/bg.png — this hidden folder is standard macOS convention
Keep the file size reasonable; the image is embedded in the final DMG

cargo-codesign writes a native .DS_Store file directly into the DMG staging directory. This file tells Finder how to display the window — icon positions, icon size, background image reference, and window dimensions.

The .DS_Store is written in macOS’s buddy-allocator B-tree format and includes:

Iloc records — icon positions for each file
bwsp record — window size and position (binary plist)
icvp record — icon view settings with embedded Alias V2 pointing to the background image (binary plist)
pBBk record — Bookmark data for the background image path
vSrn record — Finder view version

A single hdiutil create -format UDZO call produces the final compressed DMG.

Why not AppleScript?

The traditional approach mounts a read-write DMG, launches Finder via AppleScript to configure the window, then converts to read-only. This is:

Slow — Finder launch adds ~15 seconds
Flaky — AppleScript timeouts are common in CI and headless environments
Non-deterministic — Finder writes variable metadata

The native .DS_Store writer avoids all of this. It runs in milliseconds, works headless, and produces deterministic output.

Troubleshooting

Background image doesn’t appear

Verify the background path exists relative to your working directory
Check that the image is a valid PNG (try opening it in Preview)
Ensure window-size matches or is close to your image dimensions

Icons are in the wrong position

Coordinates are in pixels from the top-left of the window content area
Try adjusting positions in increments of 20-40px
Open the DMG and use Finder’s “Show View Options” (Cmd+J) to see the current grid settings

Plain DMG created instead of styled

Confirm [macos.dmg] is present in your sign.toml
All five fields are required — a missing field will cause a parse error
Run with --verbose to see the .DS_Store generation message
